MPPT Mode Solar Pump Controller Single Phase 70V Start Voltage With LCD Display

Product Categories

Xi'an Noker Electric Co.,Ltd.

Contact Now

Name: MPPT Mode Solar Pump Controller Single Phase 70V Start Voltage With LCD Display
Brand: Growatt
Price: 1 USD

Brand Name : Growatt

Model Number : 1000-S

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : To be discussed later

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 set per month

Delivery Time : 5-8 work days

Packaging Details : Carton Packing

Max input DC voltage : 450V

Start voltage : 70V

AC voltage range : 220V/ 180VAC-280VAC

Display : LCD

MPPT efficiency : 99.9%

Protection : Perfect protection

Contact Now

Single Phase Home Use Perfect Protection Solar Inverter With MPPT Mode

Application

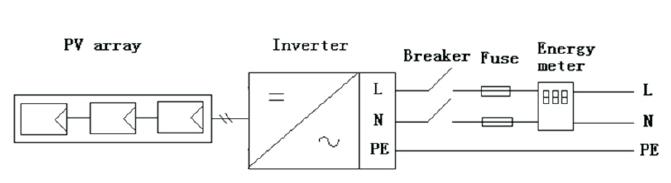

Single inverter

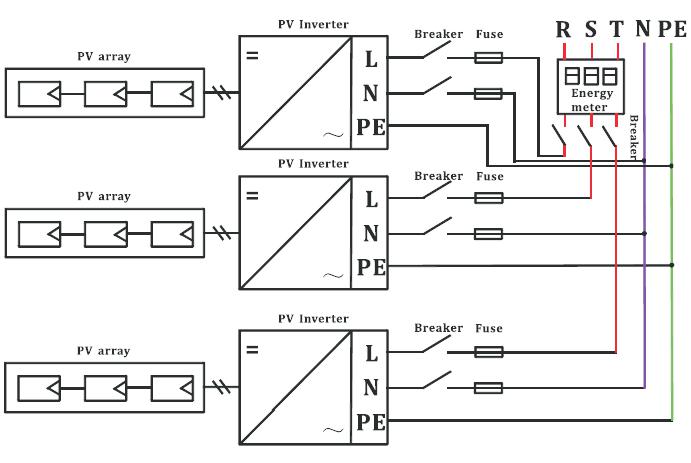

Multi inverters

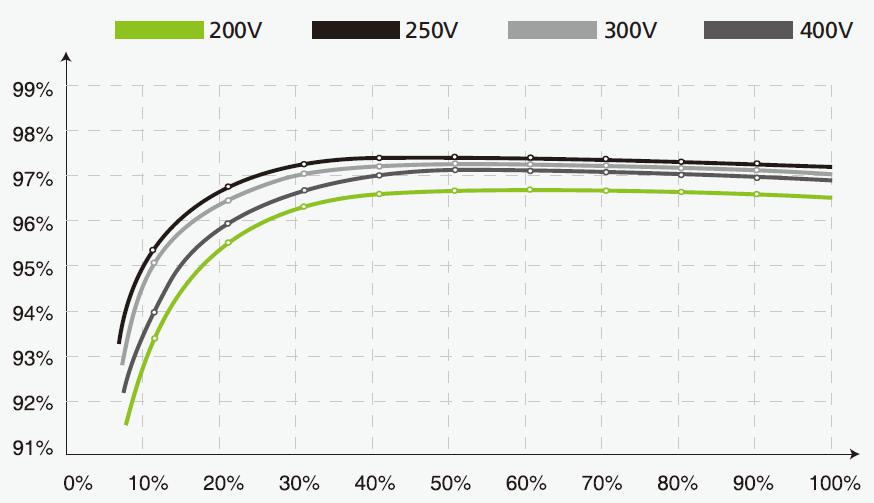

Efficiency

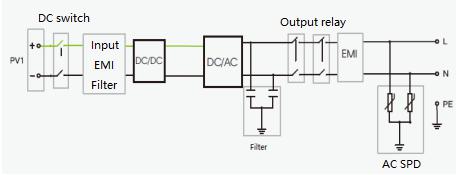

Diagram

Datasheet

Model	1000-S	1500-S	2000-S	2500-S	3000-S
Max input DC voltage	450V	450V	450V	450V	450V
Max input DC current	10A	10A	11A	12A	13A
Start voltage	80V
PV voltage range	70-450V/180V	70-450V/250V	70-450V/360V	70-500V/180V	70-550V/360V
MPPT /MPPT strings per channel	1/1	1/1	1/1	1/1	1/1
AC nominal voltage	220V/ 180VAC-280VAC
AC nominal output current	4.7A	7.8A	9.5A	11.9A	14.3A
AC grid frequency	50/60Hz±5Hz
Nominal AC output power	1000W	1600W	2000W	2500W	3000W
Max AC output power	1000W	1650W	2000W	2500W	3000W
No.of Phase	Single phase
Display	LCD
Communication port	RS232(standard), others optional
Max THDI	＜3%
Max Efficiency	97.4%
MPPT Efficiency	99.9%
Power factor	＞0.99
Environmental Protection Rating	IP65
Operation Ambient Temperature	-25...+60℃
DC reverse protection	YES
DC switch rating for each MPPT	YES
Output over-current protection	YES
Output over-voltage protection	YES
Ground Fault	YES
Leakage current monitoring	YES
Grid monitoring	YES
