Digital Built - in Bypass Soft Starter Squirrel - Cage Asynchronous Electric Motor

Xi'an Noker Electric Co.,Ltd.
Contact Now

Digital Built - in Bypass Soft Starter Squirrel - Cage Asynchronous Electric Motor

Brand Name : Noker

Model Number : NK301-090-3

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : To be discussed later

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 set per month

Delivery Time : 5-8 work days

Packaging Details : Carton Packaging

Bypass : Built-in Bypass

Current Transformer : Built-in Current Transformer

Maintain : Easy to maintain

Start mode : Multi start mode

High temperature cycle test : 72 hours of high temperature cycle test

Current Inrush : Reduce the starting current

Contact Now

Digita Built-in Bypass Squirrel-Cage Asynchronous Electric Motor Soft Starter

NK301 Series digital AC motor soft starter is new type starting equipment with advanced international level. This equipment designed and manufactured by the technique of power electronics microprocessor and modern control theory. This equipment can limit the start current efficiently when the asynchronous motor starts. It is widely applied in the field such as winding machine, pump, transition and compressor etc. It is the ideal product to replace the traditional voltage dropping start equipment such as star/triangle conversion, self-coupling voltage dropping, magnetic control dropping voltage etc.

Features

1. Based on the load characteristics, different starting mode can the related parameters can be selected. So the best starting effect can be gained.

2. The higher performance microprocessor and software are used, so the control circuit is simplified. The best perform speed can gained without the adjustment of the circuit parameters.

3. All the electronic components of this product are selected strictly. Additionally, the main control board is tested in high temperature environment above seventy-two hours. The reliability of this product can be guaranteed.

4. The modularization configuration and up-in-down-out wiring mode are adopted. It is easy to used and integrated.

5. The motor protection circuit is not be added if the single product is in used. Because this product have multiple protection function such as Overload; Line fault; Over current; the starting time and so on. So the cost can be reduced and the circuit can be simplified.

6. Operation of the keyboard is easy. User can set and modify the parameters (for example, starting, stopping running protection) by this keyboard based on the different load condition.

7. 4-20mA output analog signal is provided.

8. RS485 Modbus Communication Protocol;

9. When the rate power of Soft Starter is higher than the power of actual load, soft starter can be matched to the actual load by modifying the actual current parameter. So the parameters about starting,running and protection are correct

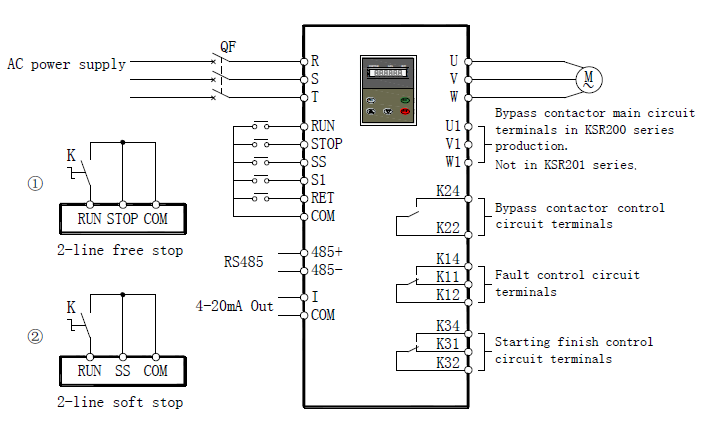

Typical applicationDigital Built - in Bypass Soft Starter Squirrel - Cage Asynchronous Electric Motor

Terminals

Terminal No. Name of terminal Description

Main circuit

R,S,T Power Supply terminal Connect to Power supply
U,V,W Motor terminal Connect to motor
U1,V1,W1 Bypass terminal Connect to Bypass contactor

Control circuit

SS Soft stop terminal Connect SS and COM directly, soft stop
RUN Run terminal Connect RUN and COM directly, start
STOP Stop terminal Connect STOP and COM directly, stop
S1 JOG Connect S1 and COM directly, jog
RET Reset Connect Reset and COM directly, reset the fault
COM Common Logic ground
485 RS485+ RS485 communication
RS485-
I Analog output + 4—20mA, input resistance ≤400Ω
COM Analog output -
K14 NO Fault output Contact capacity (AC250V/10A, DC30V/10A)
K11 NC
K12 COM
K24 NO Bypass output Contact capacity (AC250V/10A, DC30V/10A)
K22 COM
K34 NO Starting end terminals

Contact capacity (AC250V/10A, DC30V/10A)

K31 NC
K32 COM

Shipment and Packaging

Digital Built - in Bypass Soft Starter Squirrel - Cage Asynchronous Electric Motor
