Single Phase Thyristor Power Controller Modbus Communication Closed Loop Resistance

Product Categories

Xi'an Noker Electric Co.,Ltd.

Contact Now

Brand Name : Noker

Model Number : GS40

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : To be discussed later

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 set per month

Delivery Time : 5-8 work days

Packaging Details : Carton Packing

Closed loop control : The voltage / current feedback / power feedback

Load type : Resistance and inductive load

Control mode : Phase control mode and the zero position control

Communcaiton : Modbus-RTU

Current : 10-50A

Protection : Perfect protection

Contact Now

Single Phase Thyristor Power Controller Economic Modbus Communication Closed Loop Resistance

Features

1. Built-in high stability microprocessor

2. Support 4-20mA and 0-10VDC signals to automatically identify

3. 1 switch input

4. Main circuit wide range input voltage (AC110--440V)

5. The high efficiency heat dissipation scheme makes the volume small and the weight light

6. Off-phase, over-heat, over-current, load off-line and other alarm functions

7.Modbus-RTU centralized communication

8. Current range 10 / 50 A

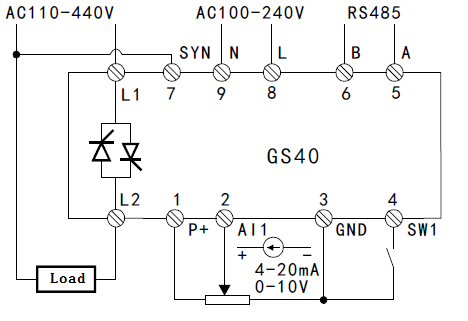

Application

Single Phase Thyristor Power Controller Modbus Communication Closed Loop Resistance

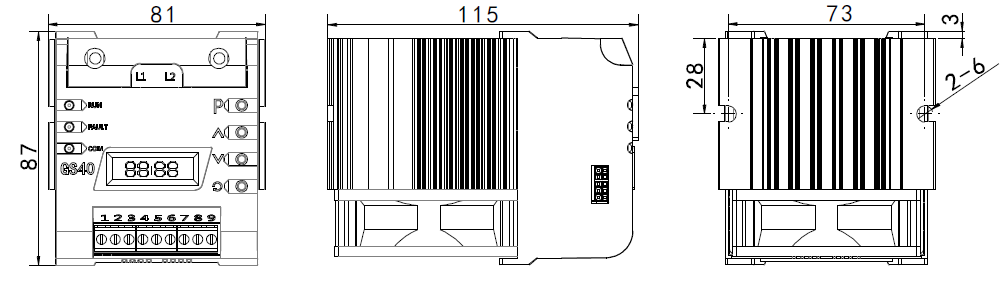

Dimension

Shipment and Packaging
Single Phase Thyristor Power Controller Modbus Communication Closed Loop Resistance
