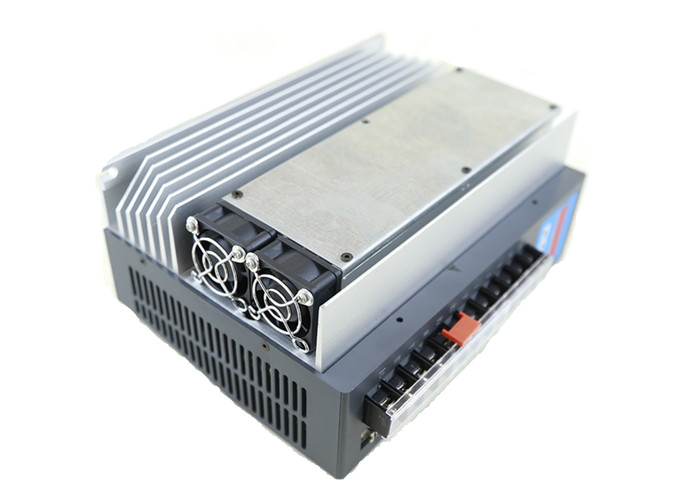

NKD-50A With Intelligent Power Module(IPM) Full Digital Control PID Control Algorithm Servo Drive
NKD-50A Series drive use of VLSI chips, intelligent power module, with perfect protection, the use of PID optimization control algorithm to improve the position and speed control accuracy and speed.Adopt digital signal processor(DSP) and ultra-scale programmable gate array(CPLD), high integration, good reliability. The use of optimized PID control algorithm to control motor operation improves position and speed control accuracy and speed. Adopt intelligent power module(IPM), with perfect protection function, display alarm code, output alarm signal. Full digital control, the user can set the control parameters to meet different application requirements.

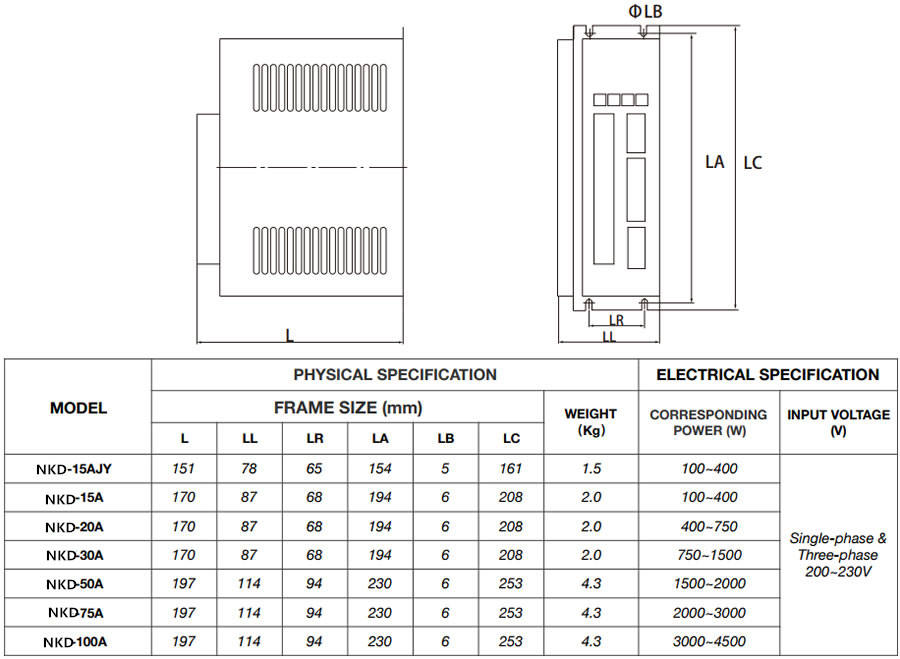

Model
| Product drive model | NKD-15A | NKD-20A | NKD-30A | NKD-50A | NKD-75A | NKD-100A |
| Adapt to Max motor power | 400W | 750W | 2000W | 3000W | 4000W | 7200W |
| Input power | Single or three phase | Three phase |
| AC220V -15--+10% 50/60Hz |
| Use environment Temp | Running: 0—55°C Store: -20°C---80°C |
| HUM | Less than 90%(no condensation) |
| Vibration | Less than 0.5G(4.9m/s2), 10-60Hz(no-condensation operation) |
| Control method | - position control b. Speed control c. Speed trial run d. JOG operation
|
| Regenerative braking | Built-in |
| Control features | Speed frequency response: 〈400Hz |
| Control input | - Servo-on b. Alarm clear c. Deviation calculator clear d. Command pulse is disabled
|
| Control output | - Servo-on b. Alarm clear c. Deviation calculator clear d. Command pulse is disabled
|
| Position control | Method of input | - Pulse+ symbol mark b. CCW Pulse PLUSE/ CW Pulse PLUSE
|
| | Electronic gear ratio | 1-32767 |
| | Pulse feedback | 10000 pulses/rev |
| Acceleration and deceleration | Parameter setting acceleration and deceleration time 6—153ms |
| Monitoring function | Speed command pulse accumulation , position deviation, motor torque, motor current, operation status, etc. |
| Protective function | Overseed, overvoltage, undervoltage, braking abnormal, Encoder abnormal, out of position, etc. |
| Display, Operation | 6 LED digital tube, 4 buttons |

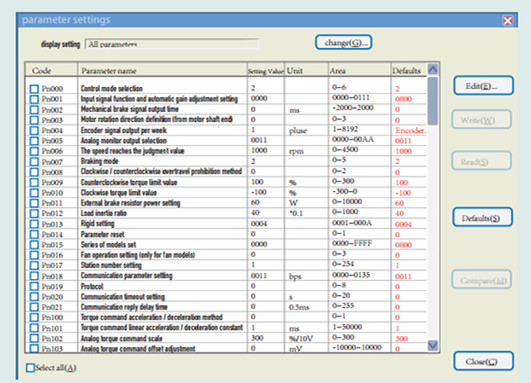

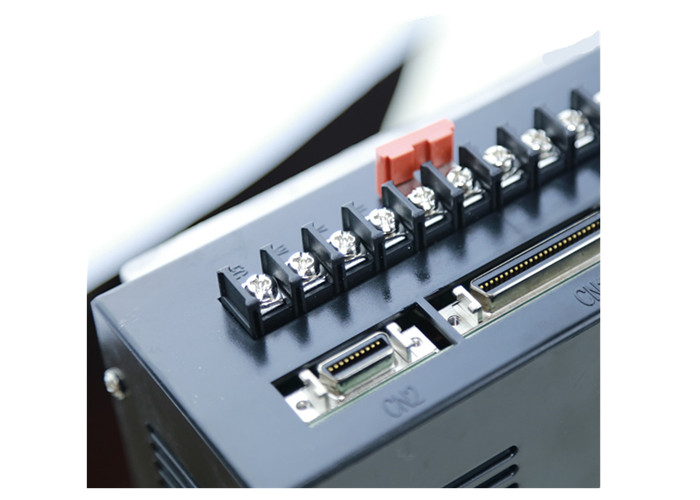

NKD Series servo drive has a standard RS232/RS485 communication interface, internal integrated communication protocol, communication protocol user interface easy to understand, you can read the drive parameters, modify, save.
And restore the factory parameter and other processing, and real-time monitoring of speed, current, alarm and other information, can easily control the motor to jog, speed, position and so on.
