Brand Name : Noker
Model Number : MTC160-16
Place of Origin : China
MOQ : 1 set
Price : To be discussed later
Payment Terms : L/C, T/T, Western Union
Supply Ability : 500 set per month
Delivery Time : 10-15 work days
Packaging Details : Carton Packing
Certification : ISO9001
Electrical insulation : Chip and bottom electrical insulation
Power cycle : Good power cycle performance
Package : International Standard package
Voltage drop : Low on state voltage drop
Installation and maintain : Installation simple easy to maintain
Volume : Small volume light weight
MTC160 1600V Big Power Inverse Parallel Low On State Voltage Drop Low Voltage Thyristor Module
Features
1. Chip and bottom electrical insulation
2. Good power cycle performance
3. International Standard package
4. Low on state voltage drop
5. Installation simple easy to maintain
6. Small volume light weight
Type | IT (AV) TC=85°C(A) | VDRM VRRM(V) | IDRM IRRM(mA) | VTM (V) | @ITM (A) | IGT (mA) | VGT (V) | di/dt (A/us) | dv/dt (V/us) | ITSM (kA) | I2t (kA2S) | Rjc (°C/W) | Viso(V) | Outline |
MT*25 | 25 | 600-1800 | 8 | 1.60 | 75 | 100 | 1.80 | 50 | 800 | 0.55 | 1.50 | 0.95 | 2500 | M1 M2 M3 |
MT*40 | 40 | 600-1800 | 8 | 1.60 | 120 | 100 | 1.80 | 50 | 800 | 0.70 | 2.50 | 0.95 | 2500 | |
MT*55 | 55 | 600-1800 | 8 | 1.60 | 150 | 100 | 1.80 | 50 | 800 | 1.00 | 5.00 | 0.65 | 2500 | |
MT*70 | 70 | 600-1800 | 8 | 1.60 | 210 | 100 | 1.80 | 50 | 800 | 1.25 | 7.20 | 0.53 | 2500 | |
MT*90 | 90 | 600-1800 | 10 | 1.60 | 270 | 100 | 1.80 | 100 | 800 | 1.60 | 12.8 | 0.41 | 2500 | |
MT*90 | 90 | 1900-2400 | 15 | 1.60 | 270 | 100 | 1.80 | 100 | 800 | 1.60 | 12.8 | 0.41 | 3000 | |
MT*110 | 110 | 600-1800 | 15 | 1.60 | 330 | 100 | 2.00 | 100 | 800 | 2.10 | 24.0 | 0.28 | 2500 | |
MT*110 | 110 | 1900-2400 | 15 | 2.00 | 330 | 100 | 2.00 | 100 | 800 | 2.10 | 24.0 | 0.25 | 3000 | |
MT*135 | 135 | 600-1800 | 20 | 1.60 | 410 | 120 | 2.00 | 100 | 800 | 3.70 | 72.2 | 0.20 | 2500 | M5 M6 M7 M8 M9 |
MT*135 | 135 | 1900-3000 | 20 | 2.00 | 410 | 120 | 2.00 | 100 | 800 | 3.70 | 72.2 | 0.20 | 3600 | M9 |
MT*160 | 160 | 600-1800 | 25 | 1.55 | 480 | 120 | 2.00 | 100 | 1000 | 5.20 | 145 | 0.17 | 2500 | M5 M6 M7 M8 M9 |
MT*160 | 160 | 1900-3000 | 25 | 2.00 | 480 | 120 | 2.00 | 100 | 1000 | 5.20 | 145 | 0.17 | 3600 | M9 |
MT*182 | 182 | 600-1800 | 25 | 1.55 | 550 | 120 | 2.00 | 100 | 1000 | 5.80 | 210 | 0.15 | 2500 | M5 M6 M7 M8 M9 |
MT*182 | 182 | 1900-3000 | 25 | 2.00 | 550 | 120 | 2.00 | 100 | 1000 | 5.80 | 210 | 0.15 | 3600 | M9 |
MT*200 | 200 | 600-1800 | 30 | 1.55 | 600 | 150 | 2.50 | 100 | 1000 | 6.50 | 259 | 0.14 | 2500 | M10 MS10 M11 |
MT*200 | 200 | 1900-2600 | 35 | 1.80 | 600 | 150 | 2.50 | 100 | 1000 | 6.50 | 259 | 0.14 | 3200 | |
MT*200 | 200 | 2800-3600 | 40 | 2.30 | 600 | 150 | 2.50 | 100 | 1000 | 7.10 | 259 | 0.14 | 4500 |

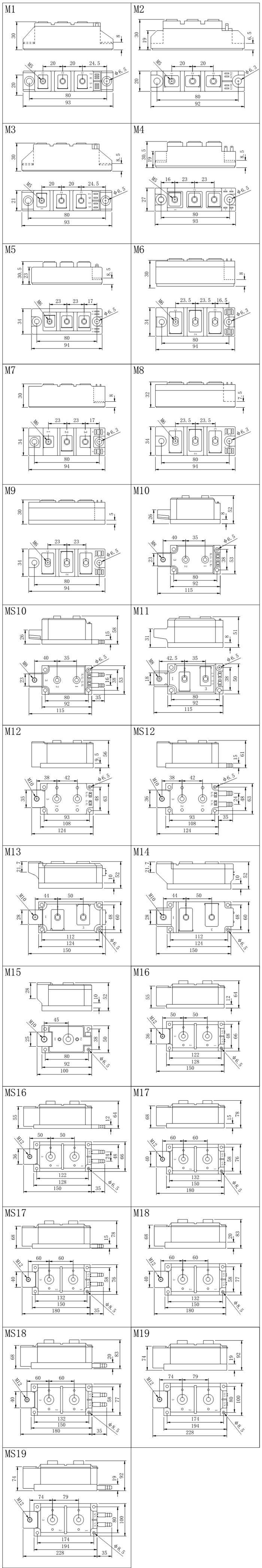

Dimension
Shipment and Packaging
![]() |
