Maximum Power Point Tracking Solar Pump Controller With CE Certification

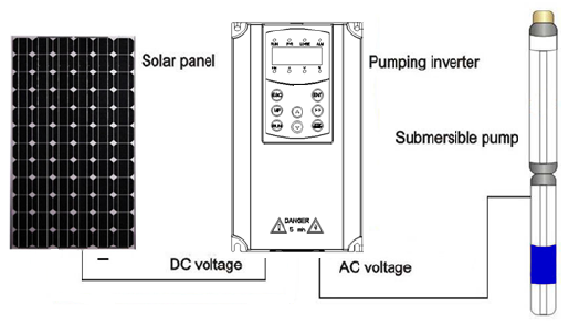

Solar pumping system, is constituted by solar module array, combiner box, liquid level switch,solar pump etc. It aims at providing solutions for the region that suffers water shortage, no power supply or uncertain power supply.
The NK112 solar controller is a speed-adjustable motor driver designed for any three-phase asynchronous motor in accordance with the IEC standard. The NK112 solar water pump system converts the high-voltage direct current of the solar cell array into alternating current, and drives a standard three-phase asynchronous motor to supply water in remote areas. When the solar energy is insufficient, the controller can switch to the standby single-phase or three-phase AC power supply manually, such as a generator. The controller provides fault detection, motor soft start and speed control.
The NK112 solar water pump controller has the function of plug and play, and is convenient to install. NK112 solar water pump controller high standard, high reliability products . Under weak light conditions, the controller will do its best to drive the water pump to lift the water and, if the light continues to be weak, the controller will decrease the pump speed to protect the system's components from damage and shut down only in extreme cases . When the abnormal condition disappears, the controller will re-drive the water pump to operate.
Features
■ Flexibility
● Compatible with any IEC three-phase asynchronous motors
● Compatible with popular solar arrays
● Grid main supply optional
■ Smartness
● Self-adaptive power point tracking
technology with up to 99% efficiency
● Automatic regulation of pump flow
● Self-adaptation to the drive used in the installation
■ Cost effectiveness
● Plug-and-play system design
● Embedded pump functions
● Battery-free for most applications
● Effortless maintenance
■ Reliability
● 10-year market proven experience of leading motor and
pump drive technology
● Soft start feature to prevent water hammer and increase
system life
● Smart IGBT module integrated to simplify system design,
reduce board space, simplify the manufacturing process
and thus
● Built-in overvoltage, overload, overheat and dry-run motor
protection
■ Remote Monitoring
● Standard RS485 interface equipped for each solar pump
controller
● Optional GPRS RJ485 modules for remote access
● Spots value of solar pump parameters monitoring
available from anywhere
● History of solar pump parameters and events lookup support
● Android/iOS monitoring APP support or PC
Datasheet
| Controller model | NK112-2S2R2 | NK112-4T2R2 | NK112-4T004 | NK112-4T5R5 | NK112-4T7R5 | NK112-4T011 | NK112-4T015 | NK112-4T18R5 |
| Input data |
| PV Source |
| Max Input Voltage(Vdc) | 450V DC | 800VDC |
| Recommended voltage, at MPPT | 280—360V DC | 500VDC---700VDC |
| Recommended PV array power(kW) | 2.7—3.5 | 2.7—3.5 | 4.8—6.4 | 6.6--8.8 | 9--12 | 13.2—17.6 | 18--24 | 22.2—29.6 |
| Input voltage | 220V AC Single phase | 380V AC±15%, Three phase |
| Max Amps(RMS)(A) | 23 | 5.8 | 10.5 | 14.6 | 20.5 | 26 | 35 | 38.5 |
| Output Data |
| Output Power rated(kW) | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Output Voltage, rated | 220V AC Three Phase | 380V AC±15%, Three phase |
| Max Amps(RMS)(A) | 9.6 | 5.1 | 9 | 12 | 17 | 25 | 32 | 37 |
| Output Frequency | 0—50Hz/60Hz |
| General Data |
| Dimension(H*W*D)(mm) | 186*130*154.8 | 241*162*180.2 | 360.5*182*195.4 | 385.5*219*196.9 |
| Gross Weight(kg) | 2.8 | 4.2 | 9.0 | 10.8 | 11 |
| Standard warranty(month) | 18 |
| Certificates | IEC/EN 61800-5-1, IEC/EN 61800-2:2004, IEC/EN 61800-3:2004,CE |
| Controller model | NK112-4T022 | NK112-4T030 | NK112-4T037 | NK112-4T045 | NK112-4T055 | NK112-4T075 | NK112-4T093 | NK112-4T110 |
| Input data |
| PV Source |
| Max Input Voltage(Vdc) | 800VDC |
| Recommended voltage, at MPPT | 500VDC---700VDC |
| Recommended PV array power(kW) | 26.4—35.2 | 36—48 | 44—59.2 | 54--72 | 66--88 | 90—120 | 112--149 | 132—176 |
| Input voltage | 380V AC±15%, Three phase |
| Max Amps(RMS)(A) | 46.5 | 62 | 76 | 92 | 113 | 157 | 180 | 214 |
| Output Data |
| Output Power rated(kW) | 22 | 30 | 37 | 45 | 55 | 75 | 93 | 110 |
| Output Voltage, rated | 380V AC±15%, Three phase |
| Max Amps(RMS)(A) | 45 | 60 | 75 | 91 | 112 | 150 | 176 | 210 |
| Output Frequency | 0—50Hz/60Hz |
| General Data |
| Dimension(H*W*D)(mm) | 445*256*228.6 | 557.5*300*282.7 | 596.8*338*322.2 | 867*443*358 |
| Gross Weight(kg) | 16.3 | 30.8 | 39.4 | 71 |
| Standard warranty(month) | 18 |
| Certificates | IEC/EN 61800-5-1, IEC/EN 61800-2:2004, IEC/EN 61800-3:2004,CE |
| Controller model | NK112-4T132 | NK112-4T160 | NK112-4T200 | NK112-4T220 | NK112-4T250 | NK112-4T280 | NK112-4T315 | NK112-4T350 |
| Input data |
| PV Source |
| Max Input Voltage(Vdc) | 800VDC |
| Recommended voltage, at MPPT | 500VDC---700VDC |
| Recommended PV array power(kW) | 159—211 | 192—256 | 240—320 | 264--352 | 300--400 | 336—448 | 378--504 | 426—568 |
| Input voltage | 380V AC±15%, Three phase |
| Max Amps(RMS)(A) | 256 | 307 | 385 | 430 | 468 | 525 | 590 | 665 |
| Output Data |
| Output Power rated(kW) | 132 | 160 | 200 | 220 | 250 | 280 | 315 | 350 |
| Output Voltage, rated | 380V AC±15%, Three phase |
| Max Amps(RMS)(A) | 235 | 304 | 377 | 426 | 465 | 520 | 585 | 650 |
| Output Frequency | 0—50Hz/60Hz |
| General Data |
| Dimension(H*W*D)(mm) | 867*443*358 | 1464.5*579*405.2 | 596.8*338*322.2 | 867*443*358 |
| Gross Weight(kg) | 16.3 | 169 | 171 | 175 | 197 | 220 | 250 |
| Standard warranty(month) | 18 |
| Certificates | IEC/EN 61800-5-1, IEC/EN 61800-2:2004, IEC/EN 61800-3:2004,CE |
