Intelligent Prosecution Type Solid State Relay Built In Over Heat Protection

Product Categories

Xi'an Noker Electric Co.,Ltd.

Contact Now

Brand Name : Noker

Model Number : SAM40

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1 set

Price : To be discussed later

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 set per month

Delivery Time : 5-8 work days

Packaging Details : Carton Packing

Isolation : Photoelectric Isolation

Control mode : Potentiometer, 4--20mA, 0--5VDC

Current range : 5--200A

Indication : Built-in indication

RC absorption unit : Built-in RC absorption unit

Thyristor : High Dv/Dt Thyristor

Contact Now

Intelligent Prosecution Type Solid-State Relay Built-in Over-Voltage Over-Current Over-Heat Protection

Features

1. Current range: 8 0 - 1 5 0 A @ 4 0 - 4 8 0 V A C

2. Peak voltage: 4 8 0 V A C

3. Inglass protection: IP20

4.Control mode: DC control

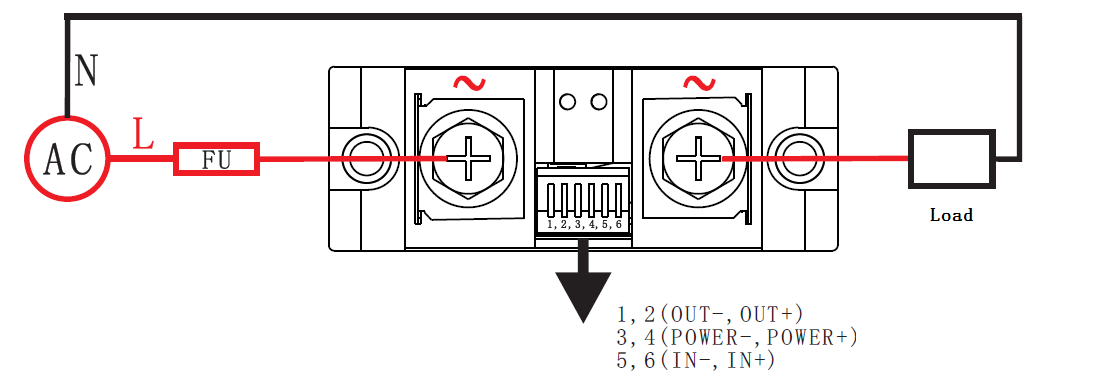

Application

Intelligent Prosecution Type Solid State Relay Built In Over Heat Protection

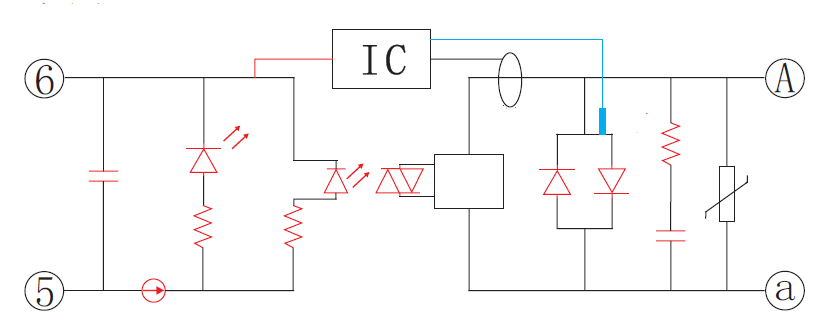

Diagram

Intelligent Prosecution Type Solid State Relay Built In Over Heat Protection

Parameters

Model	SAM4080D(OC)		SAM40100D(OC)		SAM40120D(OC)		SAM40150D(OC)
Output parameter
Chip current(A)	100		120		140		160
Load current(A)	80		100		120		150
Voltage range(Vrms)	40---480VAC
Off-state leakage(mArms)	＜5
Off-state dv/dt(V/us)	＞1000
Period Surge current(Apk)	810/895	1010/1120		1203/1280		1430/1550
On-state voltage(Vrms)	＜1.3
Thermal resistance(°C/W)	0.64	0.51		0.42		0.34
Weight(g)	181	186		195		210
Non resistance load	0.1--48A	0.1--60A		0.1--72A		0.1--90A
Resistance load	0.1--80A	0.1--100A		0.1--120A		0.1--150A
Input parameter
Control voltage range	4—32VDC
On voltage	4VDC
Off voltage	1VDC
Minimum input current(mA)	7mA
Maximum input current(mA)	12mA
Input impedence	＞100kΩ
Time of opening(ms)	1/2 cycle
Other parameter
Insulation voltage	2500VAC 1min
Insulation resistance(500VDC)	10MΩ
Maximum input/output capacity	10pF
Work temperature	-40°C—80°C
Indication	LED indication

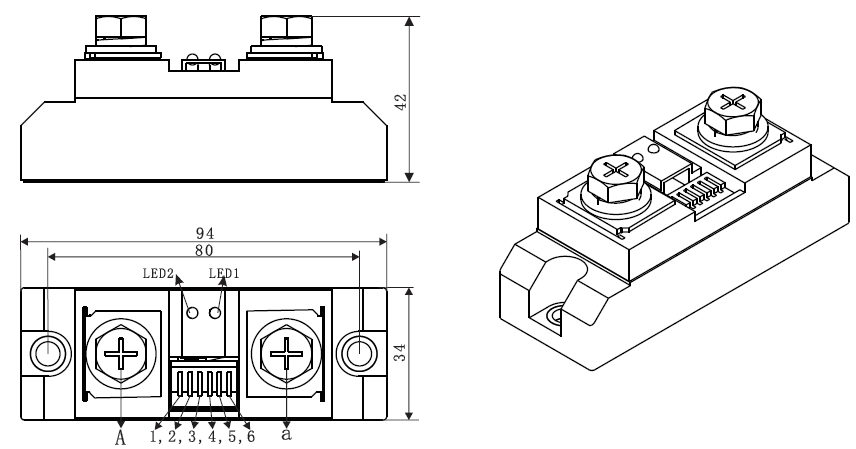

Dimension

Intelligent Prosecution Type Solid State Relay Built In Over Heat Protection

Shipment and Packaging
